This article will explain:
- Measurements and lengths of your hardware which may help when building a venue or cabinetry to suit your POS solutions
- The specifications of your hardware
All-in-One Touch Screens:
These are your all-in-one touch screen solutions. By default, these have a base included, however you can remove the base to opt for a wall mount or pole mount.
Senor Pico POS900
Purpose
Server/Client Terminal
Maximum Configuration
- 2 x WMT or KTS Terminals Total (Inc. Server/Client)
- no iPads
Processor
Intel Celeron J1900 1.99Ghz 4 Cores
Ram
4GB
Operating System
Windows 10 LTSB
Dimensions
324mm (W) x 368mm (D) x 265mm (H)
Server Computers:
The Brain of the operation. The servers are typically used for larger venues or venues with tablet solutions. Generally, the servers can be stored away in the Comms Rack, or near the modem, however they can also be used in conjunction with a touch monitor and used as a POS screen.
Fujitsu TX1320
Purpose
Premium Server
Maximum Configuration
15 x WMT Terminals or 10 x WMT iPads
Processor
Intel Xeon E3-1230 V6 3.9GHz 4 Core / 8 Threads
RAM
8GB
Operating
Windows Server 2019 Essentials
System Dimensions
98mm (W) x 399mm (D) x 340 mm (H)
Touch Monitors:
These are your Touch Monitors that will connect to an external PC. Usually this will be bundled with an Intel NUC or a Server.
Senor cSMON15
Dimensions
365mm (W) x 208mm (D) x 303mm (H)
Printers:
These are the POS printers for printing out all your dockets.
Thermal Printers use heat to print the dockets, generally these should be placed away from a heat source such as a kitchen. These are single docket printers.
Impact Printers are designed for use in the kitchen and allow up to 2 ply printing.
Senor DP220V3
Description
Senor DP220V3 Impact Printer
Interface
Serial+USB+Ethernet
Paper type
Bond 76mm x 76mm 1/2 Ply
Print Speed
5.1 Lines Per Second
Warranty
2 Years
Special Features
Dimensions
160mm (W) x 239mm (D) x 147mm (H)
Senor TP-100USE
Description
Senor TP100 Thermal Printer
Interface
Serial+USB+Ethernet
Paper type
Thermal 80mm x 80mm
Print Speed
Max. 250mm/sec
Warranty
1 Year
Special Features
Has an Inbuilt Buzzer
Dimensions
145mm (W) x 195mm (D) x 148mm (H)
GK420D
Description
Zebra GK series Label
Interface
USB or Ethernet
Paper type
Zebra 4" x 2" x 1" Direct Thermal
Zebra 2" x 1" x 1" Direct Thermal
Print Speed
Max. 127 mm/sec
Warranty
1 Year
Special Features
Label printing compatible with OrderMate
Dimensions
244mm (W) x 326mm (D) x 262mm (H)
Cash Drawers:
The standard drawer style cash draws are able to be used plugged into the touch screen directly or plugged into the printer to allow for automatic opening.
The flip-top style cashdrawer must be placed next to a printer, as the voltage is different.
KC4141
Dimensions
415mm (W) x 415mm (D) x 105mm (H)
Voltage
12V
Warranty
1 Year
Special Features
Emergency Opening

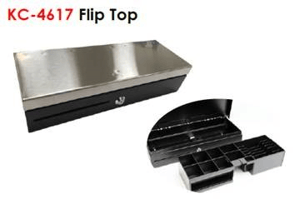

KC-4617FP
Dimensions
460mm (W) x 170mm (D) x 100mm (H)
Voltage
24V
Warranty
1 Year
Special Features
Good for benchtop fit outs
Mounting Accessories:
Additional accessories that allow for a different mounting option rather than a base.
- VESA adapter - W200mm x H180mm (Thickness from wall 15mm)
- Standard Bench Pole (Senor) - H510mm x Diameter 50mm (thread thickness 32mm)
- Ceiling Pole - 45mm diameter L900-1800mm (adjustable)
